    Default Font Size and Battery Level on Default Skin

    Hi all,
    I would like to change only the Font Size of the time / km to destination (see picture) on my default skin of Igo Nextegen.
    I know that I can use some skins but I would like to change only that font size... wich parameter I can change to do it?

    Another request.. is it possible to add the Battery level on the display?

    Thanks
    Spoiler: screenshot
    [Only registered and activated users can see links. ]



    Do not attach pictures. Upload them - there is button "ADD IMAGE TO POST" in editor.
    Last edited by Boki_Srb; 5th August 2019 at 07:03 PM.

  2.    Advertissements


  3. #2
    iGO Enthusiast Font Size and Battery Level on Default Skin
    Font Size and Battery Level on Default SkinFont Size and Battery Level on Default SkinFont Size and Battery Level on Default SkinFont Size and Battery Level on Default SkinFont Size and Battery Level on Default SkinFont Size and Battery Level on Default SkinFont Size and Battery Level on Default Skin
    Boki_Srb's Avatar
    Join Date
    Jun 2014
    Location
    Niš
    Age
    49
    Posts
    5,045
    Rep Power
    3003

    Default

    There is "battery in menu" ux in almost any skin, you can use it independently. I'm pretty sure that this request has been asked already several times.
    Discussed also about font size.
    Use a search.
    Before asking a question, know it's already discussed here and at 99.9% is not unique. Use search.
    NO ONE IS A SEER, READ (click on): [Only registered and activated users can see links. ] <- Click!
    [Only registered and activated users can see links. ] <- Click!

    Spoiler: obs
    Many questions become very arduous, a lot of time chewed deja vu...Since we have lost all the year of work and effort, many people have no will to answer the same questions again. Me neither. Use a search, please.

  4. #3
    Junior Member
    Join Date
    Jun 2017
    Location
    Italy
    Posts
    7
    Rep Power
    0

    Default

    Yes I used search but I found a lot of indications about skins but not where change only the specific settings inside Data.zip or in another place

    I found in Data.zip -> igo9_android_nextgen.ini

    [interface]
    builtin_themes="SKIN~Default - night|skin_night"
    exit_on_ac=1
    show_exit=1
    show_exit_atdestination=0
    show_time_in_title=0
    show_gps_in_title=0
    show_battery_in_title=0
    show_backlight=0
    back_button_exit=1

    Probably to show the battery level it's necessary to put to "1" this parameter:

    show_battery_in_title=0

    I will try
    Last edited by Boki_Srb; 6th August 2019 at 08:50 AM.

  5. #4
    Master modemakias's Avatar
    Join Date
    Sep 2015
    Location
    Athens Greece
    Posts
    422
    Rep Power
    1316

    Default

    Hello ... @Bombimba

    yes that's it ... but better don't touch the data.zip
    can you add all these commands in your sys ... under section:

    [interface]
    show_battery_in_title=1
    ........

    about the font size: see here a same project from @texas
    [Only registered and activated users can see links. ]
    the app maybe is diferrent, but the prosses absolutely same....
    Last edited by modemakias; 5th August 2019 at 11:37 PM.

  6. #5
    Master BIRBANTE's Avatar
    Join Date
    Jan 2016
    Location
    Tuscany - ITALY
    Posts
    284
    Rep Power
    171

    Default

    Quote Originally Posted by Bombimba View Post
    Probably to show the battery level it's necessary to put to "1" this parameter:

    show_battery_in_title=0

    I will try
    That way you'll have the battery on top, but not on the navigation screen, only when you're in the menus.

    I don't understand why you want to use the default skin, it is true that in the last skins there are too many superfluous things, but there are also important and useful things. You can always decide not to activate the functions that do not interest you.

    As you can see, with the Pongo Slin you have the largest Font Size of the time / destination and even the battery level on the navigation screen.

    Spoiler: image
    [Only registered and activated users can see links. ]
    [Only registered and activated users can see links. ]

  7. #6
    Junior Member
    Join Date
    Jun 2017
    Location
    Italy
    Posts
    7
    Rep Power
    0

    Default

    OK for the battery works in both way... modifying igo9_android_nextgen.ini and also modifying only sys.txt.
    The solution that you are suggested it's better.

    I can view the battery only in the horizontal position... I don't know if I can disable the balloon in the top/right of the screen and probably I could view the battery in that position

    Thanks BIRBANTE... I will test also Pongo.
    A question.. is it possible to change the skin quickly.
    e.g. If I install Pongo.. there is a easy way to come back to the default screen?

    OK I found where is the font size... is in params.css and inside thare a lot of sizes:

    Spoiler: list
    fontsize_main: 24;
    fontsize_sec: 18;
    fontsize_sec_twoline: 18;
    fontsize_keyboard: 28;
    fontsize_inputfield: 24;
    fontsize_double: 52;
    fontsize_title: 36;
    fontsize_main_large: 30;
    fontsize_info: 18;
    fontsize_button: 24;
    fontsize_popup: 64;
    fontsize_main_poi: 26;
    fontsize_main_poi_twoline: 20;
    fontsize_sec_poi: 20;
    fontsize_sec_poi_twoline: 20;
    fontsize_speedlimit: 28;
    fontsize_countryinfo_sign: 28;
    fontsize_simspeed: 36;
    fontsize_exitnum:24;
    fontsize_exitnum_sec:18;
    fontsize_warning:22;
    fontsize_tripcomputer_nextmaneuver:36;
    fontsize_separator:21;
    fontsize_hwyinfo:27;
    fontsize_noitems:20;
    fontsize_whereami:24;
    fontsize_tmcdelay: 28;
    fontsize_xhtml: 24;
    fontsize_chk_text:24;
    fontsize_popover_value:54;
    fontsize_header:24;
    fontsize_volume_value:40;
    fontsize_next_maneuver_dist:24;
    fontsize_mapheader:24;


    someone knows which is the size of the Time/distance to the destination?
    Last edited by Boki_Srb; 6th August 2019 at 08:53 AM.

  8. #7
    Master BIRBANTE's Avatar
    Join Date
    Jan 2016
    Location
    Tuscany - ITALY
    Posts
    284
    Rep Power
    171

    Default

    Quote Originally Posted by Bombimba View Post
    is it possible to change the skin quickly.
    Of course, there is the Skin Changer, but I don't use it and I'll never use it.

    With maps, there are areas where the TomToms are better and instead other areas where the Here are better (it also happens in Italy).
    The same thing doesn't make sense with skins, after trying them you choose the one you like best and that's it.
    [Only registered and activated users can see links. ]

  9. #8
    Master LouBouha's Avatar
    Join Date
    Mar 2017
    Location
    Tunisia
    Posts
    469
    Rep Power
    1110

    Default

    Quote Originally Posted by Bombimba View Post

    OK I found where is the font size... is in params.css and inside thare a lot of sizes:

    someone knows which is the size of the Time/distance to the destination?
    Hi Bombimba

    What you find don't necessarily match what you are looking for. Some Font size are encoded: fontsize_main + X

    In this case you don't need to change the size of the fontsize_main but rather the X.

    The Font Size of the datafields are located in the files: the_skin_potrait.css and the_skin_landscape.css in:
    The _skin_xxx.zip \ ui_nextgen \ common \ ui:
    You have to search
    Code:
    Please Login or Register to see the links

    Another problem arises the size of the container(SPRITE.datafields), It is necessary to increase its height and exceeding certain size the width of the container becomes insufficient.

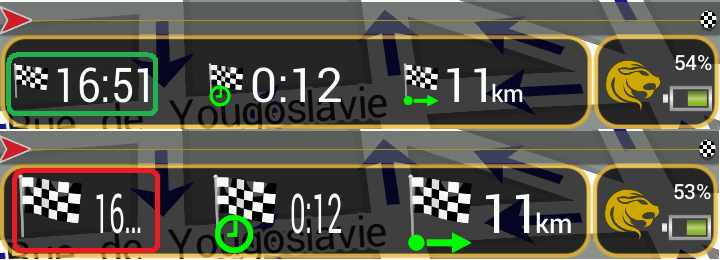

    Attached are two images the first is taken by default everything is homogeneous and the second I increased the size of the container and Font size as you want ..... it is not beautiful.

    Spoiler: pics
    Datafields


    I hope I have answered your request
    Last edited by LouBouha; 6th August 2019 at 09:54 PM.
    GPS: TomTom ONE

    Smartphone: THL T11 Android 4.2.2 Resolution 720x1280
    Sygic 14.3.4 IGO Primo 9.6.29.636868 Skins : Doupas V9.0h , Dimka/Frontzosd giphy

  10. #9
    Junior Member
    Join Date
    Jun 2017
    Location
    Italy
    Posts
    7
    Rep Power
    0

    Default

    I would like to ask also another question about "Second maneuver"... is it normal that in my default skin there isn't the distance (Km - mt) in the Second maneuver?

    Spoiler: Screenshot
    [Only registered and activated users can see links. ]
    Last edited by Bombimba; 7th August 2019 at 01:45 AM.
